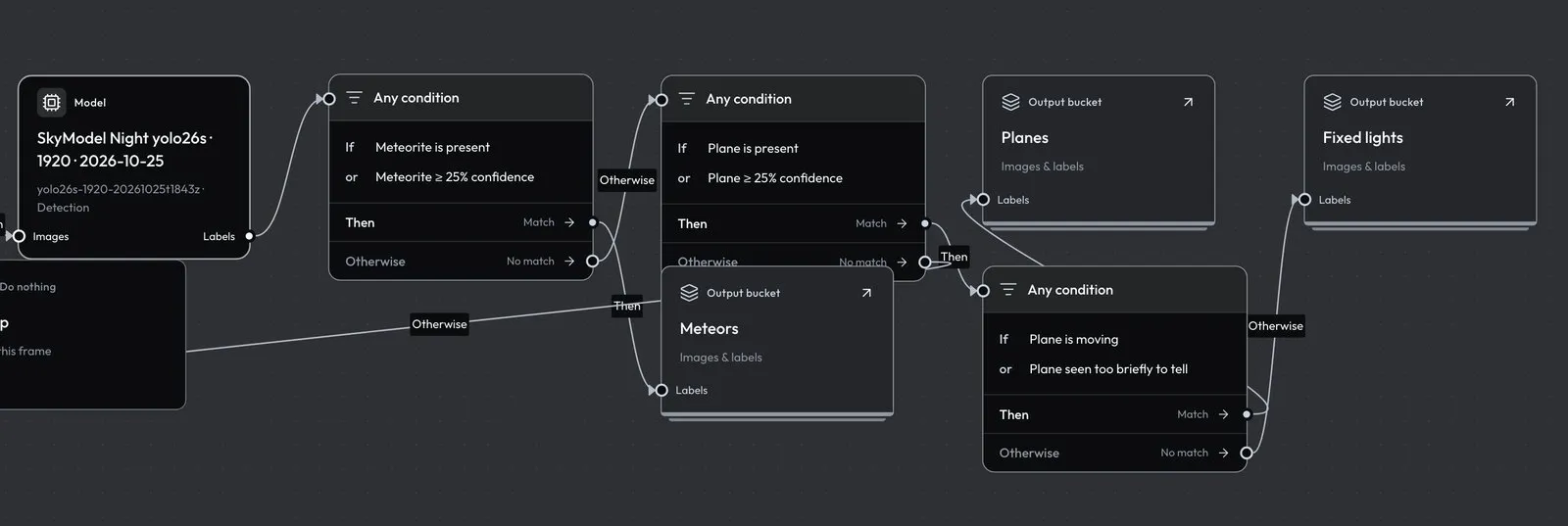

Workflows

A workflow is a graph of steps that reads video or labeled images, runs detection models on sampled frames, and sends each frame down a path to a labeled bucket (or nowhere). Workflows and buckets live in one Workshop document, saved in D1 with a revision number. You edit it in the website’s Workshop editor or through the API (GET and PUT /v1/workshop, see Workshop API). The processor executes the steps, so the rules on this page are enforced twice: by the server when you save or run, and by the processor that follows the graph.

The Workshop document

{
  "revision": 746,
  "document": {
    "version": 3,
    "buckets": [{ "id": "camera-archive", "kind": "raw", "name": "Camera archive", "description": "…", "createdAt": null }],
    "workflows": [{ "id": "night", "name": "Night sky", "updatedAt": "…", "nodes": [], "edges": [] }]
  }
}

• Revisions. PUT sends the whole document with the revision you read. If anyone saved since, the save fails with 409 and nothing changes; read again and reapply your edit. A successful save returns revision + 1.
• Buckets. Exactly one raw bucket exists, camera-archive (your cameras’ recordings, createdAt: null). Every other bucket is labeled and needs an ISO createdAt. Names are unique ignoring case. A save cannot remove a bucket or change its kind; delete it with the bucket deletion action instead (see Buckets and datasets).
• Workflows. A save cannot drop a workflow either. Deleting one goes through DELETE /api/workshop/workflows/{id} with {"revision": n}, which also cancels its queued and leased jobs; GET /api/workshop/workflows/{id}/deletion previews what it affects. Output buckets and finished results stay.

Steps and connections

Each node is {"id", "type": "workshop", "position": {"x", "y"}, "data": {...}}, and data.kind names the step. data.label is the text shown on the canvas. An edge connects a source port to the target’s in port: {"id", "source", "target", "sourceHandle": "out" | "yes" | "no", "targetHandle": "in"}. Conditions have yes and no ports; every other step with an output has out.

Steps

Input

Where the run’s media comes from. bucketId is camera-archive for recorded video, or a labeled bucket’s ID to reprocess images other runs saved.

A labeled input is pinned when the run starts: its current images and labels at that moment, one job per image. A full run refuses a bucket with more than 2,000 eligible images; a test takes the newest captures up to its image count. Later additions and edits do not reach a running job.

Frame sampling (footage)

Required after a camera-archive input, and not allowed after a labeled one (those are already images). It selects one recorded window per run and keeps one frame per interval.

Every recording that overlaps the window and is still inside the 40-day retention becomes one job. A job gets one slot per whole interval of its overlap with the window: a recording that covers 60 s of the window at a 1 s interval has 60 slots. A partial last slot is dropped, because a clip can end before its last frame would start.

• first keeps the first frame at or after each slot’s tick. If a keyframe follows the tick within min(1.5 s, interval) and inside the slot, the processor decodes that one frame; otherwise it decodes up to the exact tick. This is the fastest choice.
• change decodes every frame and keeps, for each slot, the frame with the most new light: on a quarter-size grey copy of the frame, the brightest pixel (after a 3×3 blur) that none of the previous 8 frames (about 1 s at 8 fps) was as bright at. Stars and slow planes are in the previous frames, so they cancel; a meteor or a strobe flash stands out. Light that keeps recurring at the same pixels, such as the camera’s burned-in clock, is masked out. Decoding starts 1 s before the window so the first frames have history. A change run also follows each saved moving or brief object through every frame. The constants and the reason are in Tracking and trajectories.

A slot the recorder skipped entirely (the next frame lies past the slot) is reported empty instead of reusing a later frame. A recording that ends before its last slot fails its job.

Model

Runs one published model on every frame that reaches it.

The input size is not a setting: it comes from the model’s manifest (input.width, input.imgsz or input.training_size), rounded up to a multiple of 32, 640 when none is given. The saved frame stays full size; the processor shrinks a copy to fit the model and stores boxes as fractions of the full frame, [left, top, right, bottom].

A workflow uses one to four models. A model is accepted when its adapter is ultralytics, its task is object-detection or image-classification, it has a class list, and it has a .pt artifact. Models whose name says tiled or crop, or whose input is a crop, are refused because they need preprocessing this runner does not have. See Models for publishing.

A later model replaces the predictions of an earlier one; it does not add to them. Conditions always read the predictions of the most recent model on the frame’s path, and a later model only runs on frames that reached it.

Condition

Sends each frame to its yes port (shown as Then) or its no port (Otherwise).

An empty className means any class, and class names compare ignoring case. Rules in one condition are checked independently: in an all group, a class rule and a confidence rule can be satisfied by different boxes. Put the class on the confidence or count rule itself when both must hold for the same object.

Capture time is the recording’s start plus the frame’s offset, in UTC, or the original capture time of a labeled-bucket image.

Motion reads each box’s track. A track’s motion is decided once per recording, from every detection the model made of that object, before any condition reads it. A box with no track, which is any box in a labeled-bucket input and any classifier label, counts as brief. A motion rule therefore only distinguishes objects in video runs.

The rule is “any box of the class has that motion”, so a frame holding a moving plane and a fixed light matches both moving and stationary. To set fixed lights aside, never route on stationary directly. Match any of moving and brief for the class, send yes to the bucket you keep, and send no, which then holds only frames whose every box of the class is stationary, to another bucket.

Output and Do nothing

An output can receive several connections, so both branches of a condition may end in the same bucket. A run cannot write into its own input bucket, and camera-archive is never an output.

Schedule

Starts the workflow automatically. One per workflow, connected only to the input step.

How each trigger behaves:

• At a set time starts once per chosen day at at UTC. If the scheduler misses that minute, the slot still starts any time in the next hour. The run processes the footage window in full.
• When new footage arrives is checked every 15 minutes and takes only recordings uploaded since the last scheduled run (the first takes everything already in the window), inside the footage window. With nothing new, it records skipped.
• After another workflow starts when a full (not test) run of the named workflow finishes with at least one completed job. A newly added follow schedule ignores upstream runs older than an hour. Workflows cannot follow each other in a loop; the save is refused.
• A labeled-bucket input always takes only images added since the last scheduled run, whatever the trigger.
• onlyIf skips a set-time run when its window has no footage, and a follow run when the upstream run saved no images.

A scheduled workflow’s footage day must be run-day or previous-day; a fixed date would process the same footage every time and is refused. With run-day, at must be at least 10 minutes after the window’s until so its last clips have uploaded. A window that would need a time after midnight must use previous-day.

The dashboard Worker’s cron runs every minute. A scheduled run’s ID is sched_ plus a hash of the workflow and trigger, so a repeated or retried minute never starts a second run. Scheduled runs go to the newest processor runtime that has checked in; with none, the outcome is failed and the next minute tries again. GET /api/workshop/schedules lists each schedule’s last outcome: started (with run_id), skipped, or failed (with message). The editor shows the same.

Rules before a run

Drafts can be incomplete, but Check workflow and every run validate the graph on the server and name the first problem:

• Exactly one input and at least one output, with every bucket chosen, and no output writing into the input bucket.
• A camera-archive input has exactly one frame sampling step; a labeled input has none.
• Frame sampling comes before any model; class, confidence, count and motion rules have a model upstream; every path to an output passes a model.
• Each processing step has exactly one incoming connection, and every output port is connected: yes and no on a condition, out elsewhere. Outputs and Do nothing may receive several.
• No cycles, no unconnected steps, at most one schedule.
• One to four models, each available with its weights.
• A workflow that keeps frames by change or has a motion rule needs a processor runtime with the tracking capability.

Example: a night workflow that sets fixed lights aside

This workflow processes each night’s footage from 02:00 to 09:30 UTC as it arrives. It keeps the frame with the most new light in each second and runs a night detector at 0.3. Frames with a moving or briefly seen Plane go to Planes. Frames whose planes all stay still, which are stars and fixed lights the model mistook for planes, go to Fixed lights. Add these buckets and the workflow to the document and save it with the revision you read.

{
  "buckets": [
    { "id": "planes", "kind": "labeled", "name": "Planes", "description": "Moving or brief Plane detections", "createdAt": "2026-10-25T00:00:00.000Z" },
    { "id": "fixed-lights", "kind": "labeled", "name": "Fixed lights", "description": "Plane detections that never moved", "createdAt": "2026-10-25T00:00:00.000Z" }
  ],
  "workflow": {
    "id": "night",
    "name": "Night sky",
    "updatedAt": "2026-10-25T00:00:00.000Z",
    "nodes": [
      { "id": "arrival", "type": "workshop", "position": { "x": 0, "y": 0 },
        "data": { "kind": "schedule", "label": "New footage", "trigger": "arrival", "days": [], "at": "", "workflowId": "", "onlyIf": false } },
      { "id": "input", "type": "workshop", "position": { "x": 300, "y": 0 },
        "data": { "kind": "input", "label": "Camera archive", "bucketId": "camera-archive", "camera": "sky01" } },
      { "id": "frames", "type": "workshop", "position": { "x": 600, "y": 0 },
        "data": { "kind": "footage", "label": "Night, most change", "day": "run-day", "from": "02:00", "until": "09:30", "interval": 1, "pick": "change" } },
      { "id": "detect", "type": "workshop", "position": { "x": 900, "y": 0 },
        "data": { "kind": "model", "label": "Night detector", "modelKey": "night-detector/v1", "score": 0.3 } },
      { "id": "moving", "type": "workshop", "position": { "x": 1200, "y": 0 },
        "data": { "kind": "condition", "label": "Plane moving or brief", "match": "any", "rules": [
          { "id": "moving", "kind": "motion", "className": "Plane", "operator": "moving" },
          { "id": "brief", "kind": "motion", "className": "Plane", "operator": "brief" }
        ] } },
      { "id": "keep", "type": "workshop", "position": { "x": 1500, "y": -100 },
        "data": { "kind": "output", "label": "Planes", "bucketId": "planes" } },
      { "id": "aside", "type": "workshop", "position": { "x": 1500, "y": 100 },
        "data": { "kind": "output", "label": "Fixed lights", "bucketId": "fixed-lights" } }
    ],
    "edges": [
      { "id": "e1", "source": "arrival", "target": "input", "sourceHandle": "out", "targetHandle": "in" },
      { "id": "e2", "source": "input", "target": "frames", "sourceHandle": "out", "targetHandle": "in" },
      { "id": "e3", "source": "frames", "target": "detect", "sourceHandle": "out", "targetHandle": "in" },
      { "id": "e4", "source": "detect", "target": "moving", "sourceHandle": "out", "targetHandle": "in" },
      { "id": "e5", "source": "moving", "target": "keep", "sourceHandle": "yes", "targetHandle": "in" },
      { "id": "e6", "source": "moving", "target": "aside", "sourceHandle": "no", "targetHandle": "in" }
    ]
  }
}

Why it is built this way:

• The trigger is When new footage arrives. A full run takes at most 100 recordings and 2,000 sampled frames. The whole 7.5-hour window has 450 one-minute recordings and 27,000 one-second slots, so a set-time run of it would be refused. Every 15 minutes the arrival trigger takes only the recordings uploaded since the last run, about 15 recordings and 900 frames, and outside 02:00–09:30 it finds nothing and records skipped.
• The first arrival run has no earlier run to count from, so it takes everything already uploaded in the window. Add the schedule outside 02:00–09:30. Added mid-window, the first run can exceed 100 recordings and fail each time until the window starts empty the next night.
• run-day is required on any schedule, and here it means “tonight”: the window is the UTC date each run is created on.
• Frames with no Plane at all take the no branch too, since neither rule matches. Put a condition with a class rule (Plane, present) in front of this one if those frames should go elsewhere, or to Do nothing.
• Run a test of 20–100 frames first; it uses the same pinned models and sampling and saves nothing.
